WEG CFW500 Smart Drive
Flexible Micro Drive with Integrated SoftPLC and Connectivity
The CFW500 combines a compact form factor with powerful application resources. Built-in SoftPLC functionality, modular I/O, and an extensive communications portfolio make the CFW500 the go-to drive for OEMs and end users alike. Pair it with WEG motors or retrofit existing equipment to reduce energy consumption and improve process reliability.
Power Range
0.25 to 3 HP (0.18 to 2.2 kW)
0.5 to 20 HP (0.37 to 15 kW)
1 to 150 HP (0.75 to 110 kW)
Control Performance
Sensorless or encoder feedback with automatic motor identification
IEC 61131-3 compatible programming via WLP software
Safe Torque Off (STO) SIL2/PLd option
Highlighted Features
- Plug-in communication modules for Ethernet/IP, Modbus TCP, PROFIBUS, and more
- Expandable I/O with removable terminals and encoder cards
- Integrated DC link access for common bus or regenerative systems
- Internal EMC filters and brake chopper (frame size dependent)
- Built-in PID with multiple setpoints and sleep functions
Common Applications
- Conveyors, packaging, and material handling
- Pumps, compressors, and blowers
- Mixers and agitators in food & beverage
- HVAC and building automation systems
- Fans with demand-based speed control
Engineered for Smarter Machines
Modular Design
Hot-swappable plug-in option cards let you adapt the drive to future network, safety, or I/O requirements without replacing the base unit.
SoftPLC & Macros
Pre-engineered application macros for cranes, compressors, and pumps accelerate commissioning, while SoftPLC expands logic capability.
Energy Efficiency
Sleep mode, flying start, automatic energy savings, and pump control features optimize performance and reduce operating costs.
Maintenance Tools
USB programming via WLP software, detachable keypad, and optional HMI remote for panel door mounting streamline service.
Communication Options
Ethernet/IP & Modbus TCP
High-speed Ethernet connectivity for PLCs and SCADA systems with dual-port modules.
CANopen & DeviceNet
Robust fieldbus support for OEM equipment and distributed automation architectures.
Profibus DP
Seamless integration with Siemens-based controls and multi-vendor networks.
USB & Bluetooth
Local programming via USB or optional Bluetooth modules with WEG Drive Apps.
Optimized with WEG PLC500 Control
Pairing the CFW500 with PLC500 modular controllers unlocks advanced machine coordination. Gross Automation engineers configure function blocks, diagnostics, and network topologies so your drive and PLC assets operate as a unified system.
- Pre-engineered PLC500 logic for speed reference, torque proving, and safety interlocks
- Common tag databases shared between PLC500, CFW500, and TPW HMIs for rapid commissioning
- Real-time drive diagnostics mapped into PLC500 dashboards for maintenance visibility
- Coordinated start sequences, load-sharing, and pump alternation macros managed in PLC500
Integration Deliverables
Network Configuration
EtherNet/IP, Modbus TCP, and PROFINET mapping with diagnostic tags exposed to PLC500.
FAT Documentation
Step-by-step validation scripts covering PLC/drive handshaking, safety chains, and fault reset routines.
Lifecycle Support
Remote monitoring, firmware management, and change control managed by Gross Automation specialists.

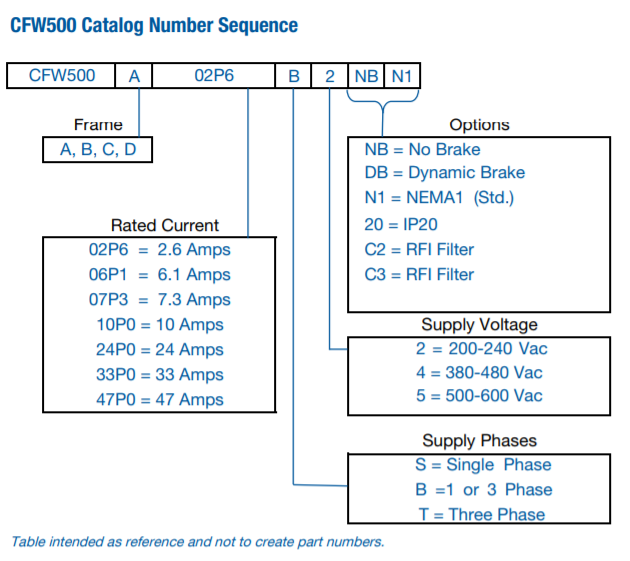

CFW500 Catalog Number Details
Flexible Ordering Matrix
Define voltage, enclosure, EMC filtering, communication slots, and optional built-in RFI filters using the catalog legend. Factory options streamline panel integration.
Application Review
Send us your motor data, load profile, and control scheme—we will provide a fully configured drive package complete with accessories.
Request Sizing SupportCFW500 Technical Resources
Programming Manual
Comprehensive parameter descriptions and SoftPLC programming reference.
Download PDFRelated Products
CFW500 FAQ
How do I select the right WEG VFD for my application?
Consider motor horsepower, voltage, duty cycle (heavy-duty vs normal-duty ratings), required control mode (V/Hz, vector, or torque), communication protocol needs, and environmental conditions. Contact Gross Automation for application-specific sizing assistance.
Do WEG drives include built-in PLC functionality?
Yes. Most WEG CFW series drives include SoftPLC functionality with IEC 61131-3 programming. The CFW11 and CFW500 series feature extensive logic capabilities that can eliminate the need for external PLCs in many applications.
How do I get a quote for WEG products?
Contact Gross Automation at +1-262-252-1600 or visit grossautomation.com/contact. Provide your application details, motor data, or part numbers and our team will prepare a proposal with pricing and lead time information.
